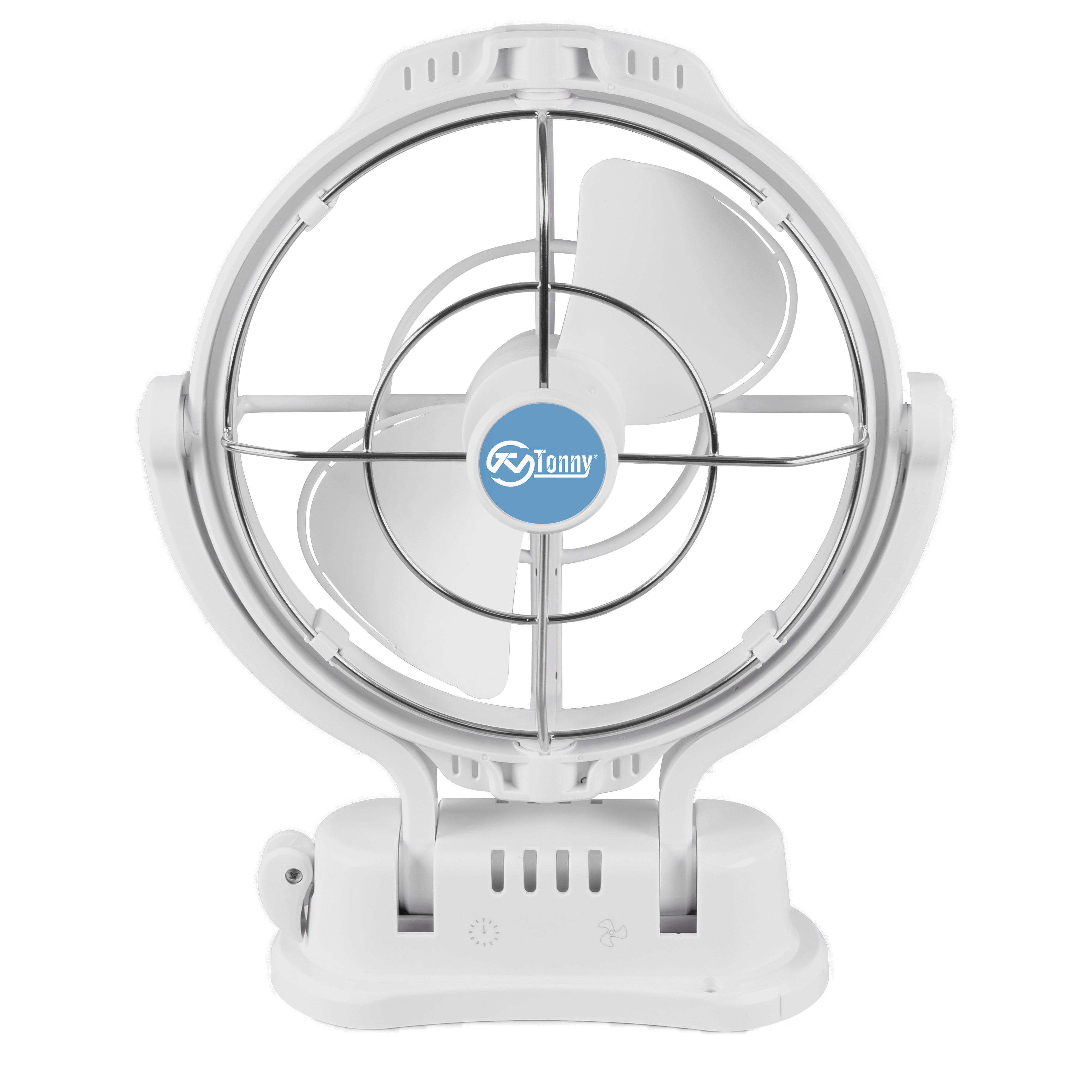

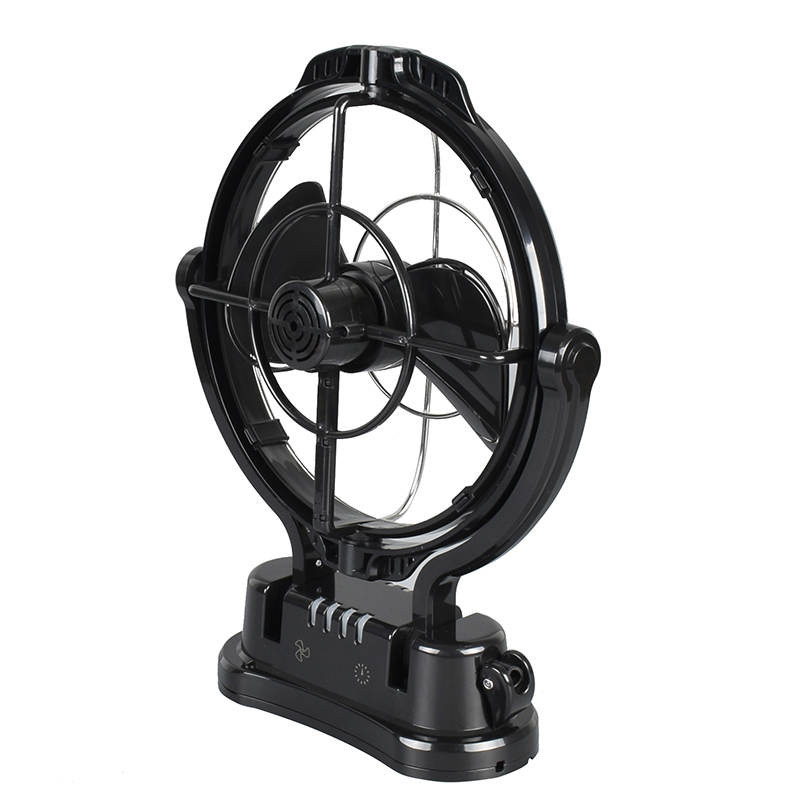

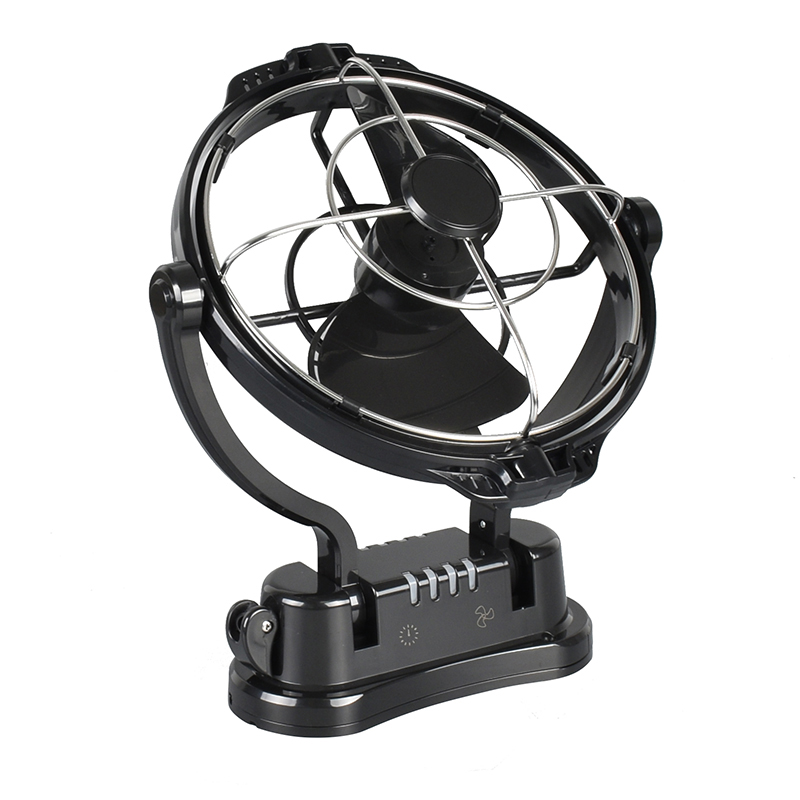

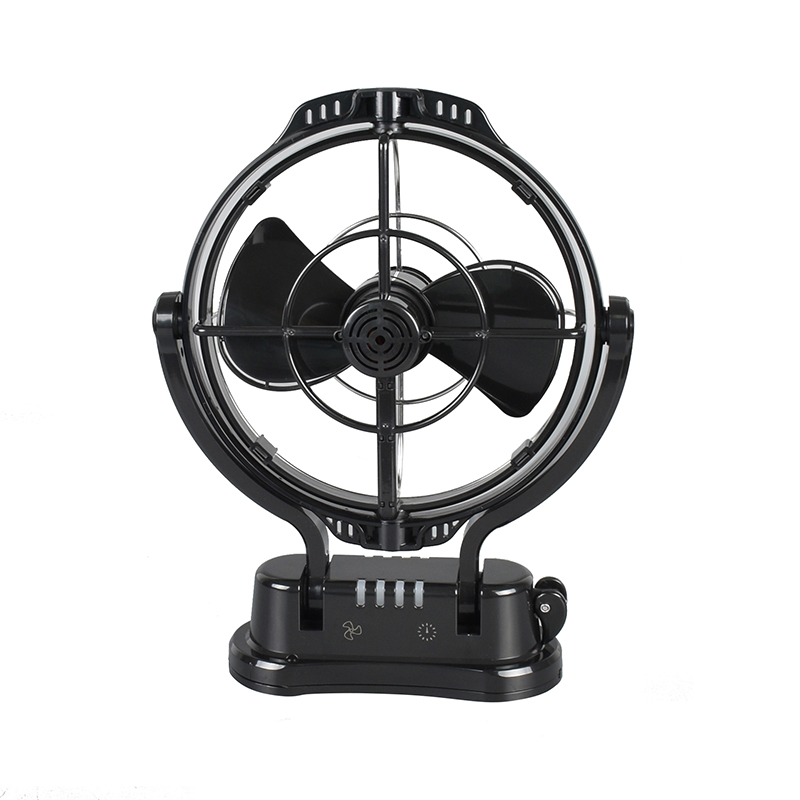

TE1-0553

12V/24V Auto-sensing DC Fan used on boat and RV

Add to Inquiry Cart Back to List
Follow us
Description+Specifications+

Description

Versatile 12/24V auto-sensing capability.
Innovative gimbaled design offers complete 360° airflow.
Sleep in comfort with four-timer settings.
Ultra-low power draw. Run continuously without risking battery burnout.
7" FingerSafe blades with open grill for unobstructed airflow.
With three speeds (1200, 1500, 1800 RPM). 185 CFM on high (314 m³/hr).
Four auto-off timer settings (3, 6, 9, and 12 hours).
Ultra quiet operation (54dB on high).
Precision cam lock.
Long-life motor with low-power draw: Current draw on low 0.06A (24V) and 0.12A (12V); Current draw on high 0.21A (24V) and 0.35A (12V).
A powerful, class-leading fan designed for marine and RV use


Model

TE1-0553

Voltage

DC 12V-24V

Current Draw

12V DC

0.2A at low speed

0.25A at medium speed

0.35A at high speed



24V DC

0.1A at low speed

0.14A at medium speed

0.2A at high speed

Motor speed

1200RPM

1500RPM

1800RPM

Noise

60db (high speed)

Timer

4 Timer setting 3,6,9,12 Hours

Blade Size

140CFM

Blade Size

7 inch

Function

Cooling Fan Used On-board / RV / Truck
